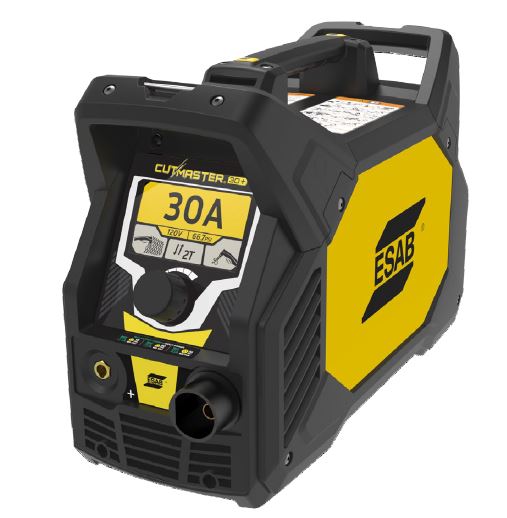

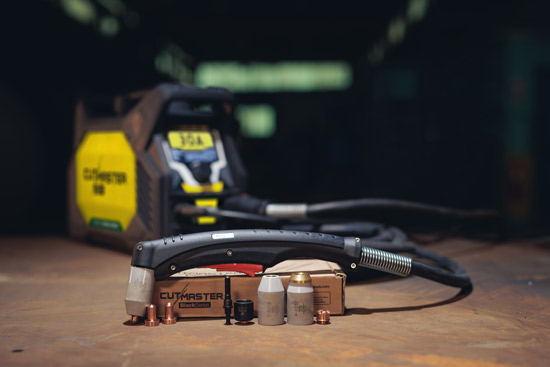

Product description Package includes: Cutmaster 30 power supply, SL60 75° torch with lead 3m (10 ft) work lead with ground clamp, consumables kit consisting of 2 Electrodes, 2 Cutting Tips, 1 Gouging Tip, 1 Shield Cap, 1 Start Cartridge, 1 Shield Cup Body, 1 Deflector Shield Cup, 1 Standoff Cutting Guide, 1 Shield cup, 1/4” NPT air fitting. Cutmaster 30 is compatible with all 1Torch ATC torch connections. Cutmaster 30 is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 4.3 in. TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm (3/8 in.). Together with the SL60 1Torch, it all adds up to the total plasma cutting package. Recommended pierce and cut capacity: 10 mm (3/8 in.) Maximum edge cut capacity: 16 mm (5/8 in.) Portable and durable with three handles and lightweight, industrial all-weather housing Bright 4.3 in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility Dual input 110-240 V, 1 ph power with automatic voltage detection that sets max output amperage Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air Switch between normal and grate cutting modes Automatic air pressure detection and post-cut air purge to expand consumable life 40% duty cycle @ 30 A, 100% @ 20 A Cutmaster Black Series consumables included for up to 60% longer life Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads Technical Specification Amperage Output: 10 – 30 A, continuously adjustable Recommended Generator Size: 6.5 kW Recommended Cut and Pierce Capacity: up to 10 mm Maximum Edge Cut Capacity: 16mm Open Circuit Voltage (OCV): 290v Input Voltage: 120 – 240 VAC /- 10%, 50/60 Hz, 1ph Rated Duty Cycle; 40% @ 30 A, 100% @ 20 A Amperage Draw: 19 A @ 230 V, 31 A @ 120 V (limited output) Input Power Cable and Plug: 3 m with Shuko plug Work Lead with Ground Clamp: 4 m 10mm2 work cable with 25 mm Gas Requirements: Compressed air Operating Temperature Range: -10° to 50° C Compressed Air Pressure Requirement: 90 – 125 psi (6.2 – 8.6 bar) (0.62 – 0.86 Mpa) Compressed Air Flow Requirement: 80 – 150 l/min (170 – 350 cfh) SL60 Torch Duty Cycle: 100% at 30 A @ 150 l/min (350 cfh) air flow Torches – for use with Cutmaster 30 : SL60 1Torch (supplied) Enclosure Class: IP23S Certifications: CE, UKCA Dimensions L x W x H: 465 x 200 x 315 mm Weight (Including Torch): 11kg Industry: Industrial and General Fabrication Light Fabrication Industrial Production & Manufacturing Automotive Bodies Hobbyists Agricultural Equipment HVAC Repair and Maintenance Pipeline Training Schools
