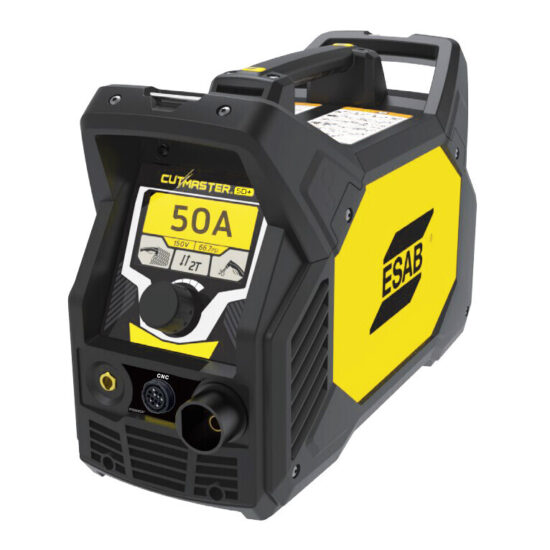

Product description Package includes: Cutmaster 50 power supply, SL60 75, 75° torch and lead 5m , work lead with ground clamp 3m, consumables kit consisting of 2 Electrodes, 2 Cutting Tips, 1 Gouging Tip, 1 Shield Cap, 1 Start Cartridge, 1 Shield Cup Body, 1 Deflector Shield Cup, 1 Standoff Cutting Guide, 1 Shield cup, regional 1/4” air fitting. Cutmaster 50 is compatible with all Torch ATC torch connections. Cutmaster 50 is the perfect combination of power and portability for hand held plasma cutting machines. Plus means more, so we’ve added a user friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any pierce and cut up to 16 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package. Recommended pierce and cut capacity: 16 mm Maximum edge cut capacity: Up to 32 mm (depending on material) Portable and durable with three handles and lightweight, industrial all weather housing Bright 10.9 cm TFT LCD display with glove friendly adjustment knob simplifies use and provides greater control and flexibility Input 400 V, 3 phase power Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double tap trigger to conserve bottled air Switch between normal and grate cutting modes Post cut air purge to expand consumable life 60% duty cycle @ 50 A with cutting voltage 150 V Cutmaster Black Series consumables included for up to 60% longer life Industry leading 3 year warranty on power supply and 1 year warranty on torch and leads CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows: 1. Start/Stop 2. OK to Move 3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80: Industry Industrial and General Fabrication Light Fabrication Industrial Production & Manufacturing Automotive Bodies Hobbyist Agricultural Equipment HVAC Repair and Maintenance Pipeline Training Schools Specifications Amperage Output: 15 – 50 A, continuously adjustable Recommended Generator Size : 12 kW (or higher) Recommended Cut and Pierce Capacity :Up to 16 mm Maximum Edge Cut Capacity* :Up to 32 mm Input Voltage: 400 VAC /- 10%, 50/60 Hz, 3ph Rated Duty Cycle @ 40° C: 60% @ 50 A with cutting voltage 150 V Recommended Circuit Breaker Size: 16A Amperage Draw: 15.5 A Input Power Cable: 3 m, 12 AWG 4/C or 2.5mm2 without plug Work Lead with Ground Clamp: 3 m, 10 mm2 work cable with 25 mm² connection Gas Requirements: Compressed air Operating Temperature Range: -10° C to 50° C Compressed Air Pressure Requirement: 125 psi) (0.62 – 0.86 Mpa) Compressed Air Flow Requirement: 142 – 235 l/min (350-500 scfh) SL60 Torch Duty Cycle: 100% @ 60 A with 165 l/min (350 scfh) air flow Torches – for use with Cutmaster 50 : SL60 1Torch (supplied) Enclosure Class: IP23SCertifications Dimensions L x W x H: 465 x 200 x 315 mm Weight: 16 kg
