Flange Wizard Multi-Purpose Chariot Beveling Gas Burning Guide 24219-CBG

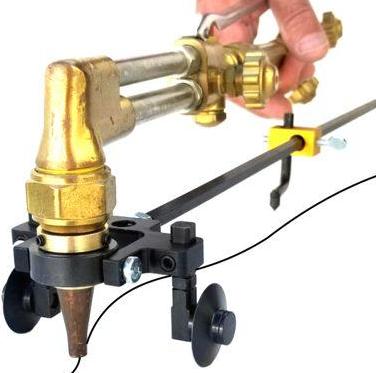

Description Multi-Purpose Chariot Beveling Burning Guide 24219-CBG – Flange Wizard Tools Flange Wizard‘s new burning guide is designed to not only cut straight, irregular shapes and circles, but also bevel them at the same time. The new improved design makes height adjustment and setting the head at the proper angle for beveling a simple job for the beginner as well as the journeyman. The wheels can be adjusted for straight, irregular shapes, or circle cuts. The new design allows you to use the third wheel in conjunction with our Magnetic Torch Guide model #MSG230 for precision burning or beveling edges of plate, beams, channels, etc. Universal bushing fits all conventional torches. Bushing I.D 41/64″ (.640) 15-1/2” extension (p/n 3311-EX) is available for larger circles. The head of the new guide will now lock in place for straight 90 degrees or bevel cutting at 37.5 degrees. Cut 7″ to 34″ Dia. circles when beveling inside and 7″ to 37″ Dia. circles when beveling outside. Cut 2″ to 36″ Dia. circles with regular set up. Use the third wheel with the Magnetic Torch Guide Cut straight or irregular shapes Care Of Tool: Spray with WD40 or any light oil to protect from rust.
